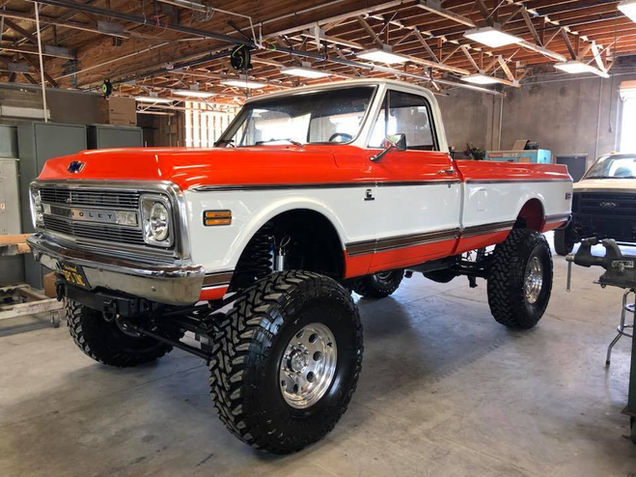

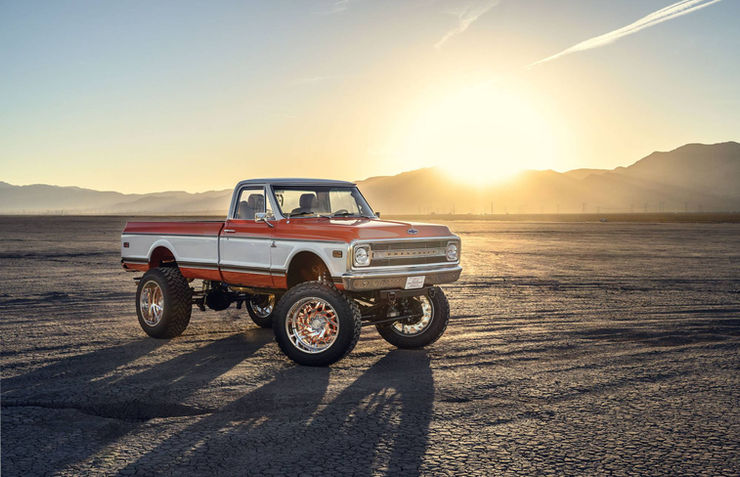

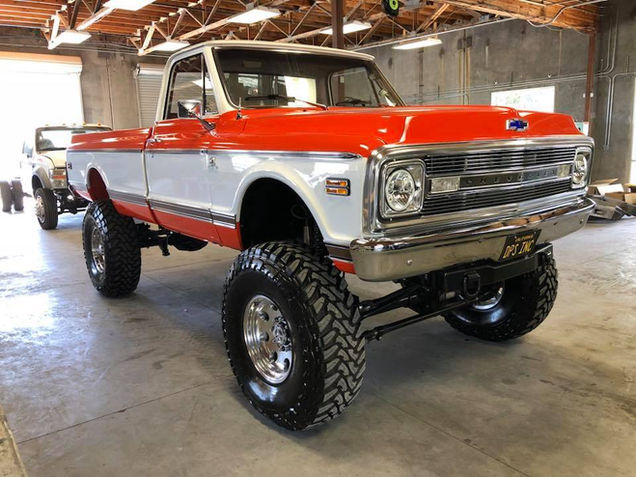

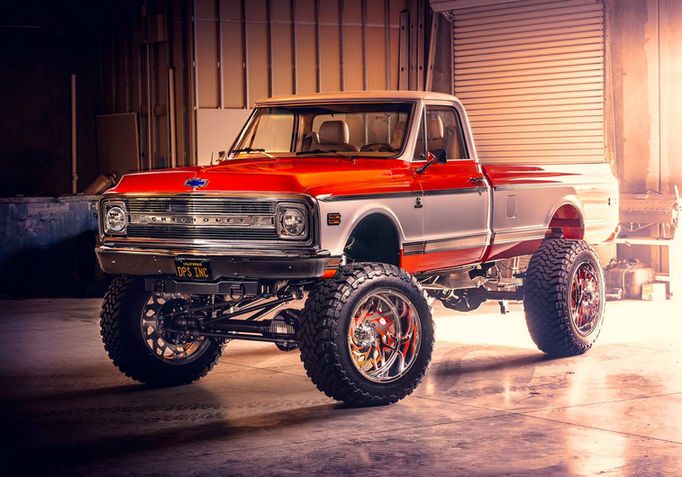

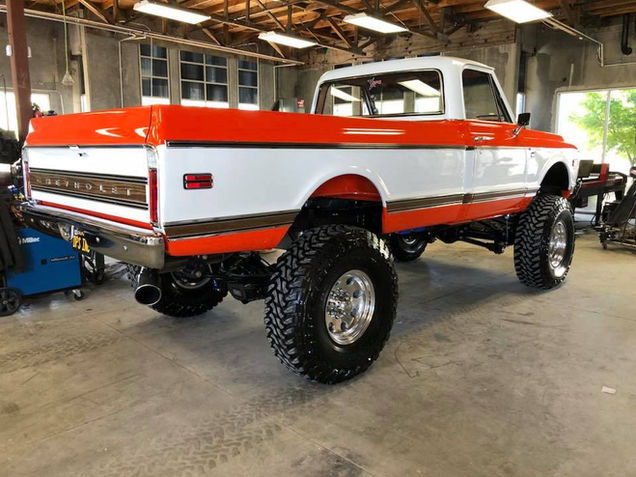

1969 CHEVROLET K20
This 1969 model k20 pickup on a 2010 Ford F-350 chassis truck with a 2005 common rail cummins swap is an absolute show stopper, won every show it’s ever been to. 5 year build. Runs flawlessly and drives like a dream. This truck was on the cover of diesel world magazine with an 8 page spread. Dubbed “the nicest 4wd c10 in the country”. This was professionally built by diesel performance specialties in Weatherford Texas.
This truck is pretty much flawless top to bottom. Only a couple hundred miles since built. This is not a fancy paint job and motor swap into some old truck. This is a full blown from scratch custom truck build. Every nut ever bolt every components either brand new or overhauled before installed.
Frame & Body: 2010 Ford F250 Frame (Boxed & Reinforced), 1969 Chevy K20 Body w/ Billet Grille & 1970 OEM Reproduction Front Bumper
Engine: 5.9L 2005 Common Rail Cummins (machined by NAPA Machine Shop & assembled by Diesel Performance Specialties) (bored .020 over, block deburred, Carillo Rods, Mahle Pistons, Assembly Balanced, Hamilton Cams, Hamilton HD Valves, Hamilton Pushrods, Hamilton Lifters, 103 lb springs, 188 Duration and 220 Lift), Mishimoto Intercooler, S369 SXE Turbo w/Race Cover & Billet Wheel (60 PSI boost), Airdog 220 GPH, 12mm Stroker-BD Diesel Injection Pump, 1/2” fuel lines, Exergy Injectors (100% over size), HP Tuners with Firepunk Diesel tune
Axels: Sterling 10.50 with 4.56 Gears, Detroit Tru-Trac Locker
Suspension: Fabtech 8” Lift Front Springs, Stock F250 Springs w/ Shackle Flip, Pro Comp MX2 Shocks
Steering: Redhead Box, 2006 Dodge Column
Other: ATS 3 Piece Stainless Exhaust w/ MBRP Flow Through Muffler, Firepunk Comp Stage 2 Transmission, 1410 U-joints, Custom Driveshafts by B&W Driveline, NP241 DHD Transfer Case, 35 Gallon Custom Aluminum Gas Tank, Dual Optima Batteries on Passenger Frame Rail Under Cab, Linex Sprayed Bed, Amp Research Running Boards, American Made Wood Grain Trim, Painted Orange/Red by Rookers Collision, Custom Tan Interior by Pacos Upholstery, Seats from 2005 Chevy Truck, Stock Dodge Gauge Cluster with Dash Bezel from 2005 Dodge, Overhead Dodge Control Panel, Power Windows & Doors, Autometer A-Pillar Gauges, Pioneer & JBL Sound System.

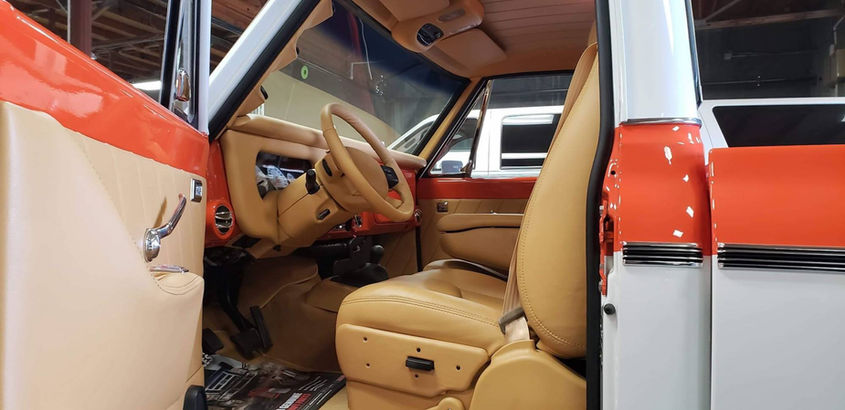

Custom two tone paint with wood grain trim. Working anti-lock brakes, air conditioning, cruise control, overhead console display, power windows and locks, modern interior and heated seats. The Truck will come with two sets of wheels - 24x14 forged wheels with 40x15.50 tires & the old style 17” wheels with 40x13.50 tires. Truly a 1 of 1 K20, don't miss this one guys, contact us to set up an appointment today.
5.9L 2005 Common Rail Cummins
